AyudaNet F900V

Dual-Band Wireless AC XPON ONU / ONT

Download Document

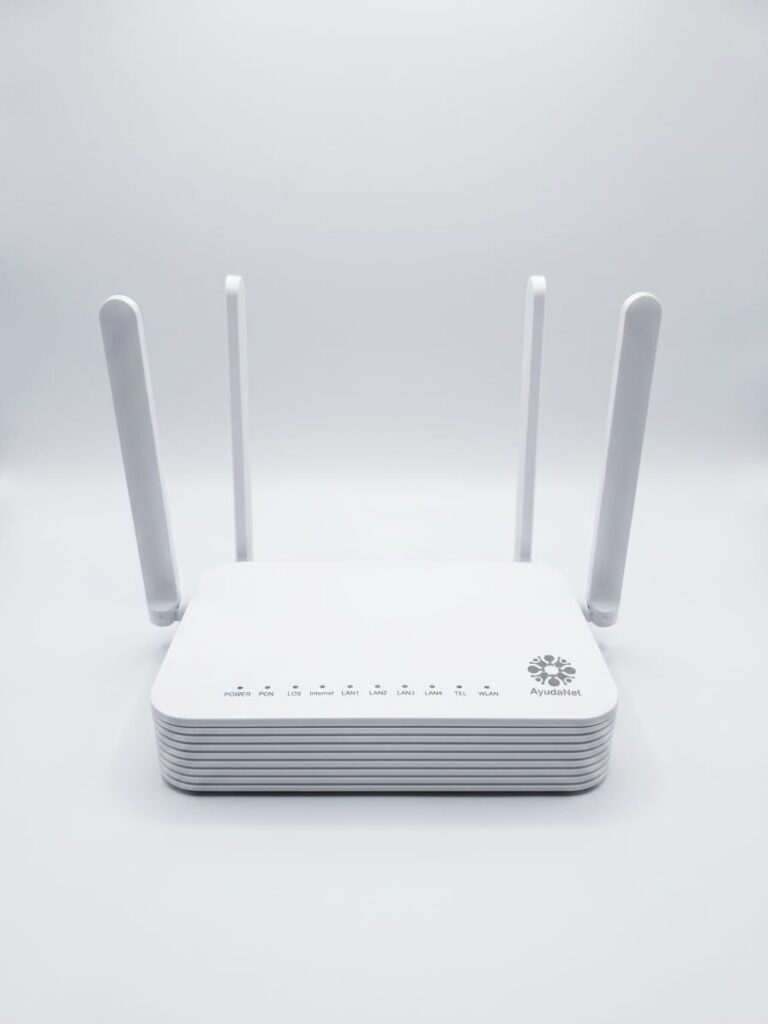

Figure 1: Front Panel Profile & LED Matrix

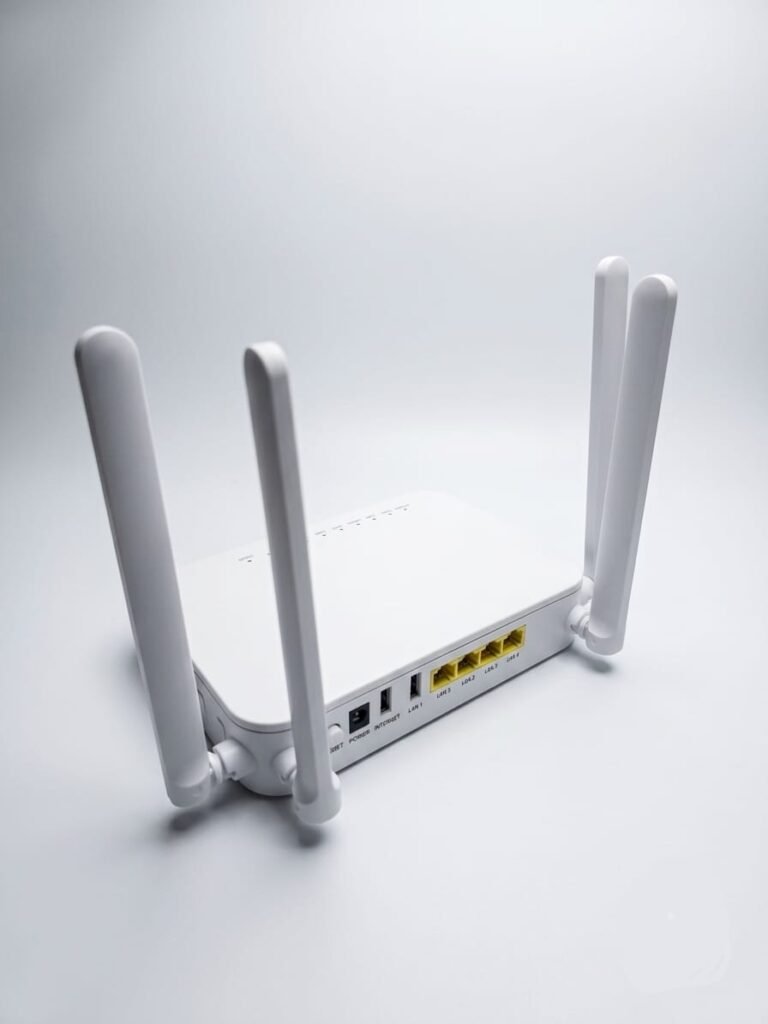

Figure 2: Rear Hardware Interfaces & Ports

The AyudaNet F900V is a premium, high-performance Dual-Band XPON Optical Network Unit (ONU/ONT) engineered to meet the strict demands of modern Fiber-to-the-Home (FTTH) and high-density corporate broadband deployments. Featuring intelligent XPON dual-mode auto-sensing, the F900V seamlessly adapts to either GPON or EPON architecture based automatically on the service provider’s OLT setup. Equipped with concurrent dual-band Wireless AC and full Gigabit Ethernet routing capabilities, it guarantees ultra-fast data throughput, minimized latency, and extended network longevity.

1. Physical Interfaces & Hardware Architecture

  • PON Interface
  • LAN Interfaces
  • USB Storage
  • Antenna Matrix
  • 1 * SC/UPC (or SC/APC) multi-mode adaptive port
  • 4 * 10/100/1000 Mbps self-adaptive Gigabit Ethernet RJ45 ports (4GE Full Gigabit)
  • 2 * USB 2.0 host interfaces (for local storage sharing, FTP services, or data backup)
  • 4 * High-gain external omnidirectional antennas (5 dBi operational gain)

2. Optical & Fiber Transmission Performance

  • • GPON Mode Rates: Upstream bandwidth line rate up to 1.244 Gbps | Downstream line rate up to 2.488 Gbps .
  • • EPON Mode Rates: Symmetrical Upstream and Downstream throughput data rate of 1.25 Gbps.
  • • Transmission Reach: Supports reliable optical physical transmission distances up to 20 km.
  • • Optical Sensitivity: High-sensitivity receiver mechanism to ensure link stability under varying fiber signal attenuation profiles.

3. Wireless (Wi-Fi) Specifications

  • • Wireless Standard: Concurrent Dual-Band 802.11ac (Wireless AC).
  • • Frequency Profiles: Simultaneous 2.4 GHz (optimized for long-range wall penetration) and 5.8 GHz (optimized for high throughput, interference-free traffic lanes).
  • • Multi-Device Efficiency: Built-in Multi-User MIMO (MU-MIMO) engine to reliably maintain multiple simultaneous connections without speed drop-offs.

4. Software, Routing & Network Management

  • • Operational Modes: Supports flexible deployment profiles including Full Route, Bridge, and Access Point (AP) topology.
  • • IP Layering: Native support for concurrent IPv4 and IPv6 dual-stack routing architectures.
  • • Carrier Remote Management: Fully compliant with industry-standard OMCI and TR-069 / ACS protocols, facilitating zero-touch automated provisioning, remote troubleshooting diagnostics, and over-the-air firmware upgrades.
  • • Security & Traffic Control: Integrated stateful inspection hardware firewall, flexible VLAN tag/untag mapping rules, and advanced Quality of Service (QoS) engines for prioritization of voice and high-priority corporate data flows.

5. Power, Physical & Environmental

  • Chassis Engineering
  • Power Architecture
  • Power Consumption
  • Operating Limits
  • Industrial-grade airflow thermal enclosure with cross-ventilation grids for continuous 24/7 peak-load performance.
  • External 12V DC, 1.5A power adapter input
  • Energy-optimized configuration; max operational draw less than 12 Watts.
  • Temperature range: -10°C to 60°C | Humidity range: 5% to 95% (non-condensing conditions).
